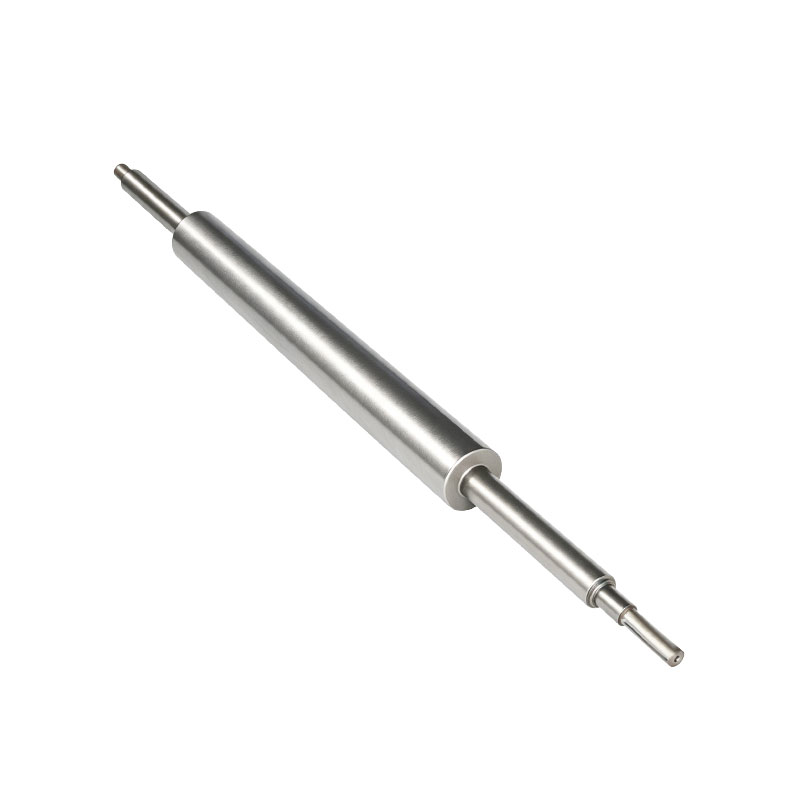

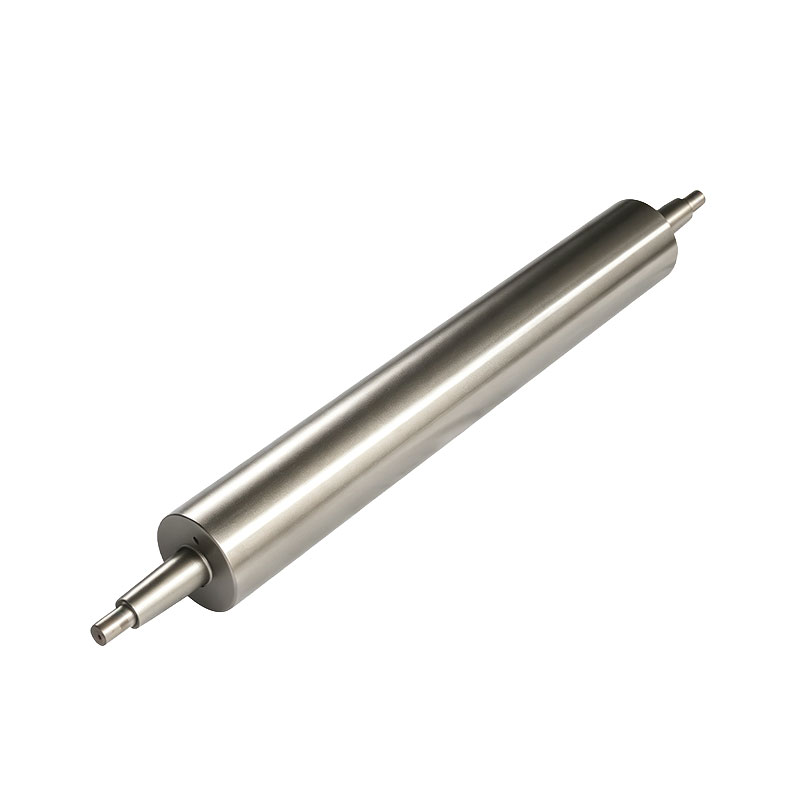

Custom Shafted Hard Anodized Aluminum Alloy Guide Roller

Reliable web handling depends on more than simply allowing a roller to rotate. The roller must maintain alignment, resist surface wear, and respond smoothly to acceleration and changes in web tension.

AstraRoll's Shafted Hard Anodized Aluminum Alloy Guide Roller is designed around these requirements. The lightweight aluminum body reduces rotating mass, while the through-shaft structure provides stable support and straightforward integration into existing machinery. A smooth hard-anodized working surface improves resistance to abrasion, scratching, and oxidation while providing clean contact with film, paper, foil, and other continuous materials.

The roller can be manufactured to customer drawings or existing machine dimensions, making it suitable for new equipment, OEM production and replacement applications.

The AstraRoll Technical Advantage

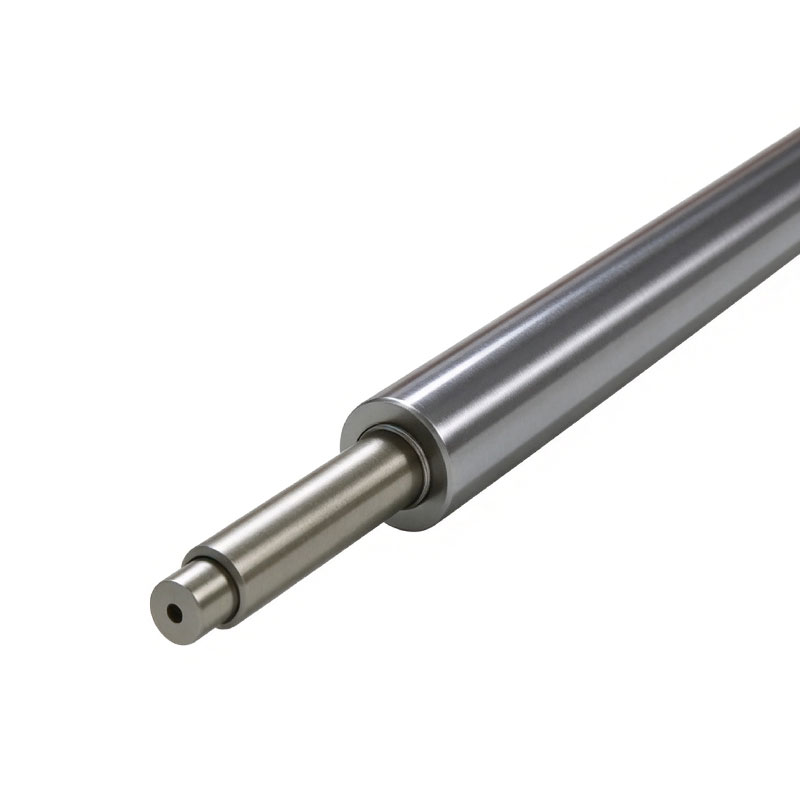

Stable Through-Shaft Construction: Unlike a hollow guide roller with independent shaft ends, the through-shaft configuration runs continuously through the roller assembly. This provides a robust structural foundation, helps maintain alignment, and allows shaft-end geometry to be matched directly to the customer's machine frame, bearing blocks, or mounting arrangement.

Hard Anodized Wear Surface:  The aluminum roller body is treated with hard anodizing to create an integral oxide layer rather than an applied paint or polymer coating. The hardened surface improves resistance to abrasion, scratching, oxidation, and general industrial wear while retaining the lightweight advantages of aluminum. Coating thickness and surface hardness can be selected according to operating speed, web material and wear requirements.

Smooth Web Contact:  A smooth roller face is particularly suitable where the web should pass over the roller without intentional embossing, spreading, or pattern transfer. Controlled surface finishing helps minimize marking and unnecessary friction when handling materials such as:

• Plastic films
• Packaging films
• Paper
• Aluminum and copper foils
• Battery separator films
• Textile webs
• Laminates
• Electronic and optical films

Lightweight, Low-Inertia Design: Compared with an equivalent steel roller, an aluminum alloy roller reduces rotating mass. Lower inertia allows the roller to respond more readily to changes in web speed, making aluminum especially attractive for high-speed and low-tension web handling applications.

Precision Machining and Dynamic Balancing: Roller concentricity, shaft alignment, and balance directly affect web stability. AstraRoll combines CNC machining with runout inspection and dynamic balancing according to the operating requirements of the application. For higher-speed machinery, balancing requirements can be specified according to the customer's maximum working RPM.

Key Specifications

Roller Type: Shafted / Through-Shaft Guide Roller
Material: Aluminum Alloy
Aluminum Grades: 6061-T6 / 6063-T5
Surface Treatment: Hard Anodizing (25–50 μm, customizable)
Surface Hardness: HV400–HV700 (depending on alloy and treatment)
Outer Diameter: Custom, typically 30–250 mm+
Face Length: Custom, up to approx. 4,000 mm depending on design
TIR / Runout: ≤0.02 mm (precision grade options)
Dynamic Balancing: G2.5 / G6.3 or application-specific
Shaft Material: Carbon steel / stainless steel / custom
Shaft Ends: Fully customizable
Surface Roughness: Customized based on web material
Production: Prototype, OEM, and batch production

All dimensions and performance requirements can be manufactured according to drawings, samples, and actual operating conditions.

Why Choose AstraRoll?

Built Around Your Machine

Roller diameter, working face, shaft length, bearing position, shaft-end geometry, and mounting dimensions can be produced according to existing drawings or samples. This makes the roller suitable for both new OEM equipment and replacement projects.

Surface Treatment Matched to the Application

Standard anodizing and hard anodizing serve different operating requirements. AstraRoll can select the anodizing specification according to web tension, abrasion, operating environment, and required service life rather than applying one standard finish to every roller.

From Prototype to Repeat Production

Custom samples, replacement rollers, and production quantities can be supported according to project requirements, helping equipment manufacturers maintain consistent specifications across future orders.

Q1. Are you a trader or direct factory?

We are a direct manufacturing factory with over 20 years of expertise in high-end industrial rollers, casters and material handling solutions. Our facility operates with ISO-certified quality management systems, allowing us to maintain full control over production cycles and quality standards. Throughout two decades of growth, we have established deep, long-term strategic partnerships with several listed companies and global automation leaders, proving our reliability as a high-tier industrial supplier.

Q2. What are your main products?

AstraRoll specializes in the engineering and production of three core product lines: Industrial Rollers, Heavy-Duty Wheels, and Precision Casters. We do not just sell components; we provide integrated movement and transport solutions. Our products are widely utilized across high-demand sectors, including: New Energy, Lithium Battery, Mining, Heavy Industry, Medical Institutional, Agriculture and Logistics.

Q3. What about delivery time?

We deeply understand that project timelines are critical.
Standard Products: Usually dispatched within 7–15 working days if the components are in stock.
Customized/OEM Orders: Depending on the complexity and volume, the lead time typically ranges from 20–35 days. This includes time for technical drawing confirmation, specialized tooling, and rigorous pre-shipment testing.
Shipping Methods: We offer flexible global logistics solutions, including FOB and CIF terms. We ship via Sea Freight (for bulk industrial orders), Air Freight (for urgent project needs), and International Express (DHL/FedEx/TNT) for smaller components or samples.

Q4. How can I get a quote for customized products?

Since a significant portion of our business involves specialized engineering, pricing is tailored to your specific technical requirements. To provide an accurate quote, please provide the following details: Technical Drawings or Sketches, Application Environment, Quantity, Special Requests. Our engineering team typically reviews and responds to custom inquiries with a formal quotation within 24–48 hours.

Q5. What is your payment?

TT / Paypal / Western Union / LC / Credit Card etc. are all available to us.
